factory-produced panels are inserted into the sub-construction on the construction site, complete selection of detail solutions
The relevant national approvals apply.
new and existing buildings, thick system build-ups possible, exterior and interior
broad colour shade variety – RAL colour shades, screen printing, logos, etc., no limitation to the light reflectance value

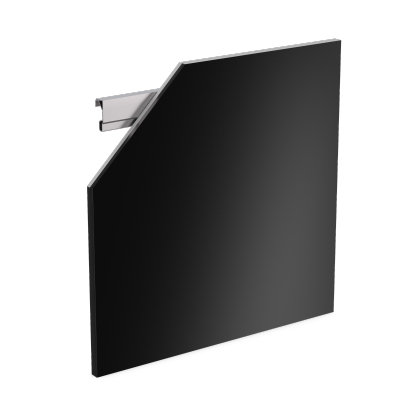

smooth, shiny surface made of tempered safety glass with a depth effect, panel facade with joints as design elements, formats available up to 6.5 m², other glass variants on request

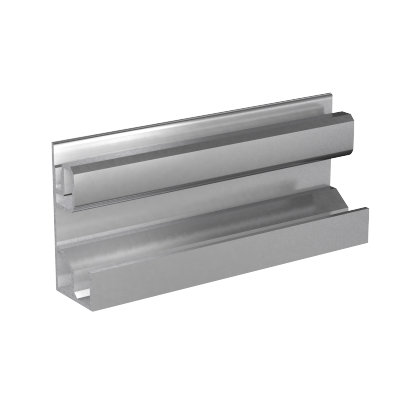

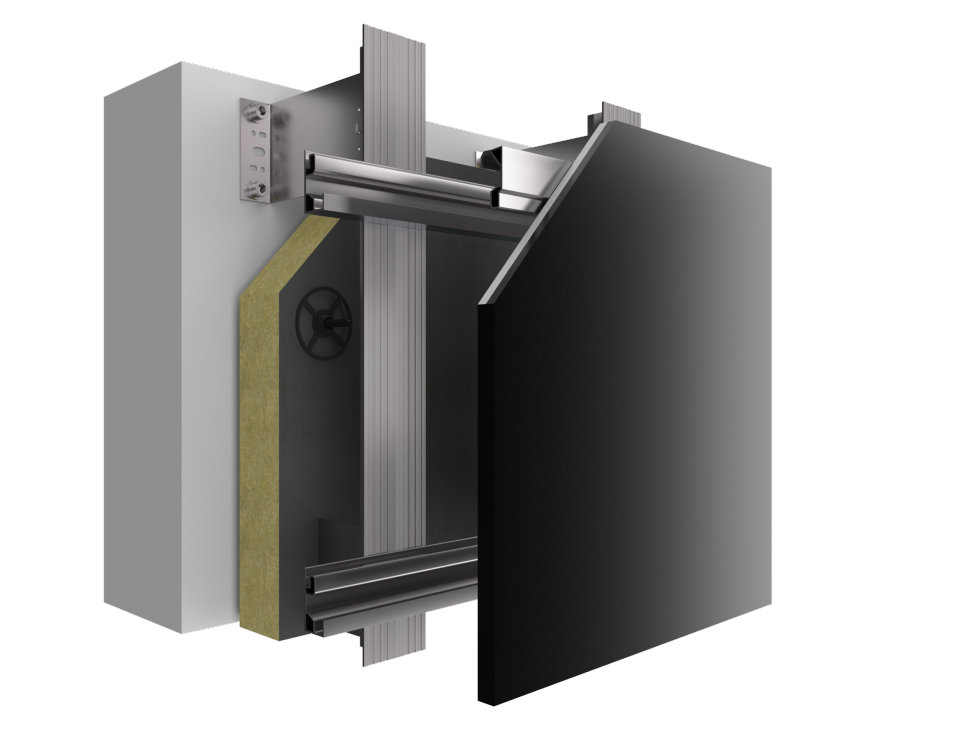

by agraffe profiles, non-visible, easily adjustable metal sub-construction with the lowest thermal bridging coefficients, in timber frame construction with timber supporting battens
high impact resistance, high stability in case of blast loads, low risk of injury in the event of glass breakage due to bonded tempered safety glass
resistant to earthquakes
class A2-s1, d0 in accordance with EN 13501-1, fire barriers may be required in accordance with national specifications
improvement of up to 18 dB (A) in the sound reduction index
masonry, e.g. brick, calcium silicate masonry units, cellular concrete, fair-faced masonry and masonry veneer, concrete and concrete slab construction (three-layer concrete slabs), timber frame construction
exclusive glass panel system with non-visible fixing, panel facade with accentuated joints for the decorative design of high-quality glass surfaces (individual formats available), benefits in terms of building physics thanks to rear ventilation of the facade (humidity, sound and thermal protection), smooth surface resistant to dirt, making for low maintenance costs regarding cleaning, unevenness can be levelled by means of an adjustable sub-construction, fast installation in all weather conditions due to prefabrication at the factory, can simply be hung on agraffe profiles, high reliability due to system solution with matched components
mineral wool faced with nonwoven, system implementation also possible without insulation
