Expert tip StoPox KU 614 thix
Electrical conductivity floor coatings protect
Protection of people and electronics
Electrical conductivity floors protect electronic building elements from damage caused by electrostatic discharge. They also prevent explosions, for example in warehouses with flammable media or a dusty atmosphere. Our StoFloor KU 614 thix electrostatic discharge flooring system with the new StoPox KU 614 thix structural coating offers you state-of-the-art technology and therefore the most reliable protection for electrostatic discharge areas.

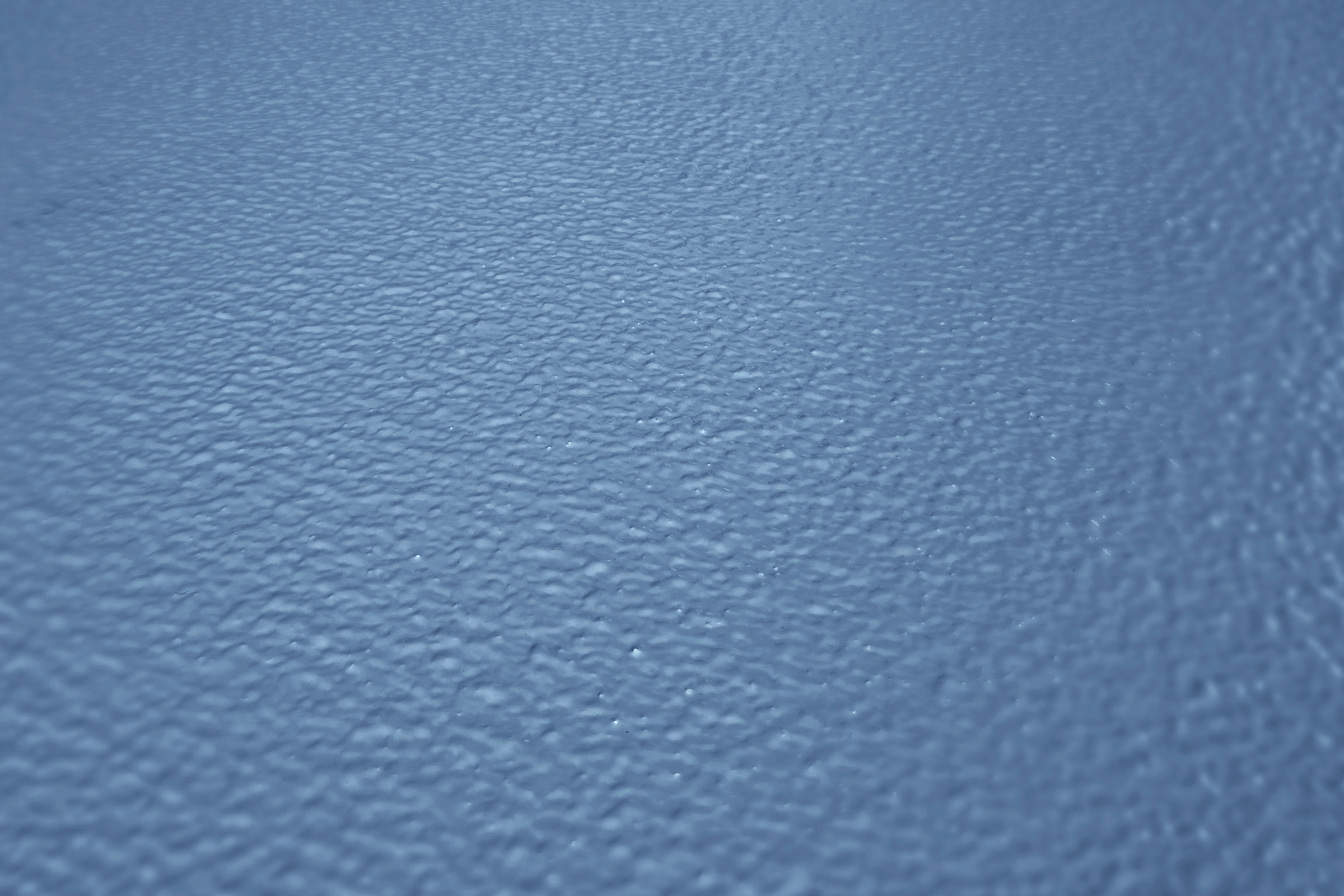

Integrated slip-resistance
StoPox KU 614 thix is an electrically volume-conductive structural structural coating with integrated slip-resistance (slip-resistance R9).
In addition, StoPox KU 614 thix is mechanically highly resilient and chemically resistant. This makes it an ideal coating for industrial industrial flooring.
The epoxy resin has also been certified for use in the automotive industry.
Excellent electrical conductivity
StoPox KU 614 thix has been certified as having excellent electrical conductivity. The electrical conductivity of this textured coating is almost almost independent of the relative damp. Even at a low humidity of 12 %, the requirements of the DIN EN IEC 61340-5-1 electrostatic discharge are perfectly fulfilled.
One work step saved
The StoFloor ESD KU 614 thix system structure does not require any additional sealing coat. This saves time and money.
Another plus is the low coverage (approx. 0.7 kg/m²) and the very good levelling properties.
All advantages at at a glance
- Slip-resistant R9
- Mechanically highly resilient, good chemical resistance
- Low VOC content in accordance with the criteria of the Committee for health evaluation of building products (AgBB)
- Free from paint wetting impairment ingredients
- Limited according to RAL colour chart and StoColor-system tintable
- Excellent electrical conductivity
- Volume-conductive - reliably conducts away of electrostatic loads
- System resistance "person-footwear-floor" < 109 Ohm according to DIN EN IEC 61340-5-1
- Body voltage "walking test" <100 Volt according to EN IEC 61340-5-1
- Personal protection according to DIN VDE 0100-410 in combination with the conductive layer StoPox WL 118
- Suitable for hazardous areas - resistance to ground < 108 Ohm according to TRGS 727
