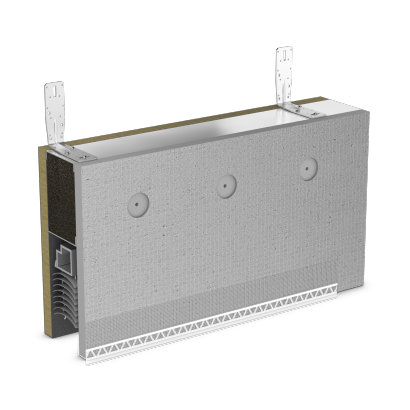

StoElement JAK-A

closed window blind box, easy to install, render carrier board (20 mm) mechanically stable on the front side, {**CUST-YPEIGE-00005940:Dämmkern aus Foamglas**}, {**CUST-YPEIGE-00005941:Rückwand aus Mineralwolle-Sandwichplatte**}, with a metal profile for fixing the window blind, defined load transfer through metal profiles connected with screws and metal brackets at the top, covers the window frame, {**CUST-YPEIGE-00005942:Unterseite hinten mit überstreichbarer Kaschierung (aus beschichtetem Glasfaservlies)**}, underside of the render carrier board with white stop profile and mesh, with airtight cable grommets (left and right) for the connection to the drive motor

Colour shade

render carrier board: light grey, {**CUST-YPVHIN-00001521:unterseitige Kaschierung (hinten): Weiß**}, underside plastic profile (in front, lintel element): white

Format

total thickness: 140, 160, 180, 200, 220, 240, 260, 280, 300 mm, thickness of the lintel element: 20 mm

Notes

using the Sto-Installation Bracket JAK is recommended for installation, which must be separately ordered if it has a total length of more than 240 cm, the element is multi-part consult with the planner or window blind installer regarding the dimensions the dimensions are measured without stop tracks configuration of the window blind box can be found at: www.jalousiekasten-konfigurator.de

exterior, for integrating the window blind box into the insulation layer, for insulant thicknesses ≥ 140 mm at 100 mm shaft width, for insulant thicknesses ≥ 160 mm at 120 mm shaft width, {**CUST-YPANWE-00005074:einsetzbar für nichtbrennbare WDV-Systeme**}

The specific technical specifications and information on the products contained in the Technical Data Sheets and system desrciptions/approvals must be observed. To obtain the relevant documentation, please contact your local representative or send an e-mail to stocretec@sto.com.
