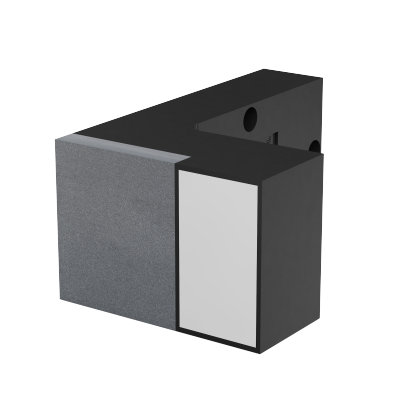

Product details StoFix Trawik ALU-RL
made of rigid polyurethane foam, with foamed-in steel sheet inlay, with an integrated aluminium plate for the screw connection of the fixture, with a high pressure laminate board for pressure distribution, installation of the fixture with type M 6 - M 12 screws, building material class: B2 in accordance with DIN 4102
Colour shade
black
Format
base area: 280 x 125 mm, usable area: 97 x 45 mm, types: 80 - 300 mm (in 20 mm intervals)
Notes
building material class: B2 in accordance with DIN 4102 fix to the substrate with 3 screw-in anchors or injection anchors use the StoFix Trawik ALU injection anchor or StoFix Trawik ALU frame anchor check the anchorage of the product in the substrate separately recommendation: use a setting jig for installation refer to the approval for the rated values national technical approval Z-10.9-648 observe the information in the technical documentation on StoFix mounting elements
exterior, for thermal-bridge-free fixing of medium-weight building elements in external wall insulation systems, for fixing in window reveals, for installations requiring structural analyses, e.g. railings and fall protection
