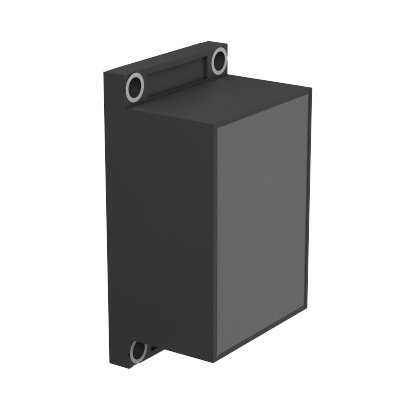

StoFix SLK-ALU-TR

made of rigid polyurethane foam, with foamed-in steel brackets and tension rods made of fibre-reinforced plastic, with an integrated aluminium plate for screw connection of the fixture, with a high pressure laminate board for pressure distribution, installation of the fixture with type M 6 - M 12 screws

Colour shade

black

Format

base area: 250 x 150 mm, effective surface: 162 x 82 mm, thicknesses: 100 - 300 mm (in 20 mm intervals)

Notes

building material class: B2 in accordance with DIN 4102 fixing with four fixing elements in the substrate fixing with the StoFix SLK-ALU injection anchor check the anchorage of the product in the substrate separately recommendation: use a setting jig for installation refer to the approval for the rated values national technical approval Z-10.9-576 observe the information in the technical documentation on StoFix mounting elements

exterior, for thermal-bridge-free fixing of heavy building elements in external wall insulation systems, for installations requiring structural analyses
